Shark-S600S Single-Frequency Side Scan Sonar is a compact, lightweight, and portable sonar with ultra-low power consumption. It features 600kHz CHIRP signal processing technology, delivering both high-resolution imaging.
The system’s core components include a pressure-resistant towfish, a high-strength Kevlar cable, a waterproof deck unit, and proprietary OTech sonar software. The towfish is engineered with a robust and durable structure while maintaining compact and lightweight. It supports single-operator deployment and retrieval and can be configured for towed, hull-mounted, or side-mounted operation. The optimized hydrodynamic profile ensures stable towing performance under varying conditions. The system is designed for ultra-low power consumption and can operate on AC power or via an inverter connected to a battery supply. The system has an ultra-low power consumption design and supports both AC power supply and battery inverter power.
The proprietary OTech software includes features such as real-time image mosaicking, sonar image display, survey line planning and navigation, track tracking and coverage display, data recording and playback, target management and export, and multi-window sensor information display. The sonar image adaptive equalization technology ensures consistent display quality for both near and far images. With minimal parameter settings and a user-friendly interface, the software is easy to operate. It supports output in standard XTF format, enabling processing in third-party software.
Key Features
• lightweight, one-man portable, user-friendly, and reliable
• Supports real-time switching between LFM Chirp signals and Continuous Wave pulses during operation

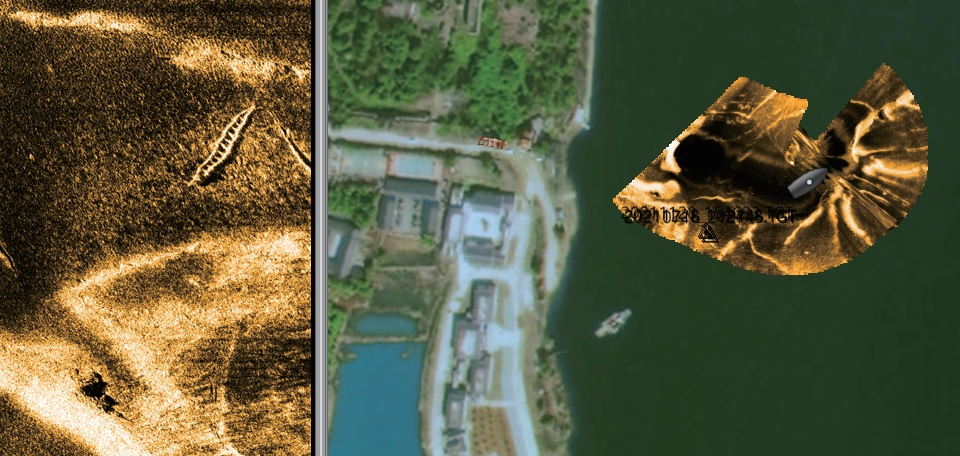

• Real-time map loading and mosaicking
• OTech’s multifunctional software offers free periodic upgrades and updates.
Sonar Specifications | Shark-S600S |
Operating Frequency | 600kHz |
Pulse Type | LFM (Chirp) / CW |
Maximum Range | 120m |
Beamwidth | Horizontal: 0.3°; Vertical:50° |
Resolution | Along-track resolution: 0.005h (range); Across-track resolution: 1.25cm |
Transducer Mounting Angle | Adjustable downward angles of 10°, 15°, or 20° (factory set to 20°) |
Maximum Operating Depth | 500m |
Towfish Dimensions / Weight | 767mm(L)×105 mm(D) / 15kg |
Deck Unit Dimensions / Weight | 190mm(L)×150mm(W)×50mm(H) / 1.2kg |
Power Supply / Consumption | 220/110V AC or 12V DC inverter input, 15W |
OTech Software | Real-time mosaicking; live online mapping; OTSS and XTF formats recording; SDK development support; continuous raw data output. |
Tow Cable | Kevlar coaxial cable, 20m (customizable) |
Applications
• Emergency support, police investigation, and firefighting rescue

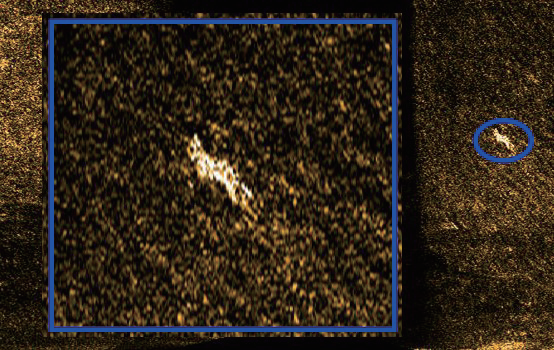

• Underwater security and hazardous target detection
• Waterway management and obstruction survey
• Marine geology and geophysical survey
• Monitoring of coral reefs, artificial reefs, and underwater aquaculture
