Shark-S900P side scan sonar is a small, portable, easy-to-use, ultra-low-power high-resolution sonar.It has 900khz chirp FM signal processing technology, with a range of 45 meters on each side to ensure sufficient coverage width, and 0.5 beam angle along the track direction to ensure high-resolution imaging.
Shark-S900P is composed of a single transducer array and an electronic unit.The electronics unit is available in both sealed and non-sealed versions. It can be embedded in unmanned vessels or underwater robots, as well as other platforms, or mounted with brackets to meet various requirements. The transducer structure is reliable, durable, compact, and lightweight, with an underwater pressure resistance depth of up to 1000 meters. The system is designed with ultra-low power consumption, which can be directly powered by DC battery.

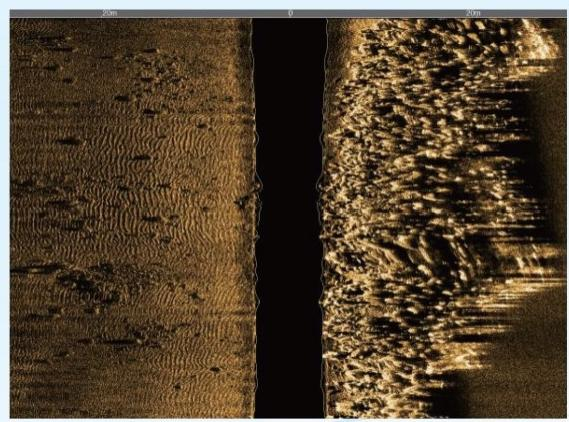

Autonomous Otech software has the functions of sonar image display, line planning and navigation, track tracking and coverage display, data recording and playback, target management and export, multi window display of sensor information, etc.It can output standard xtf format data, support third-party post-processing software processing, and can be customized according to specific needs.
FEATURE• Compact, portable, easy to use, with high reliability.
• Supports real-time switching between Chirp FM and CW continuous pulse signals.
• Ultra-low power consumption design for long-time operation
• Stainless steel construction with pressure resistance up to 1000 meters.
• Otech's proprietary multifunction software supports regular upgrades and updates at no additional cost.
| Sonar Specification | Shark-S900P |
| Frequency | 900kHz |
| Pulse Type | CW & LFM CHIRP |
| Maximum Range | 45M |
| Beam Width | Horizontal:0.5°;Vertical:45° |
| Resolution(h-range) | Along Track:0.0075h; AcrossTrack:1.25cm |
| Maximum Depth Rating | 1000m |
| Transducer Size/Weight(air) | 285mm*55mm (Length*width)/1kg |
| Unsealed Deck Unit Size /Weight (air) | 260m*165mm*60mm/1.8kg |
| Sealed Deck Unit Size /Weight (air) | 240m*105mm (Length*Dia)/2.1kg |
| Power Consumption | 12VDC, 15W |
| Software OTech | Windows, NMEA 0183 Navigation Data Input; OTSS、XTF Output Data Format |
| Transducer Cable | 2m |
