Side Scan Sonar

The Shark-S600P side scan sonar is a miniaturized high-resolution imaging sonar specifically designed for unmanned surface vehicles (USVs), underwater robots (ROVs, AUVs, UUVs), and various other small carriers. A single transducer array integrates dual side scanning function and has Chirp frequency modulation processing technology of 600kHz. With a narrow beam opening angle of 0.3 ° along the trajectory direction, it can clearly image underwater terrain and various small targets, suitable for applications in various underwater target detection, underwater safety, emergency search and rescue, and other fields.

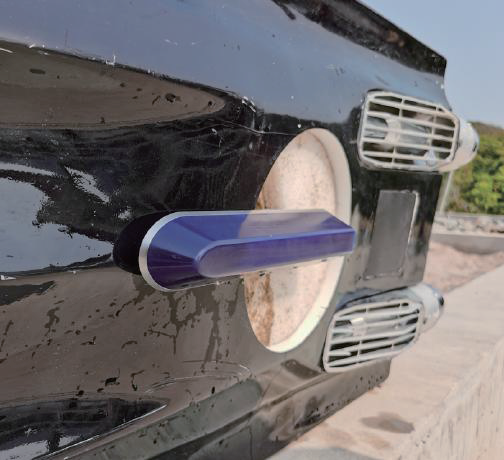

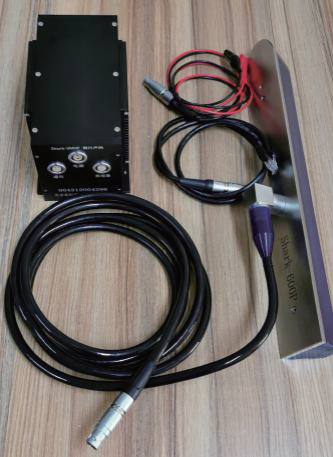

The core hardware consists of a single transducer array and electronic units, which can be embedded and used on platforms such as unmanned ships or underwater unmanned submersibles. It can also be fixed and installed through brackets to meet various needs. The structure of the transducer array is reliable and durable, with simple installation and underwater pressure resistance depth of up to 300 meters. The system is designed with ultra-low power consumption and can be powered by a wide voltage range of 9-18V DC.

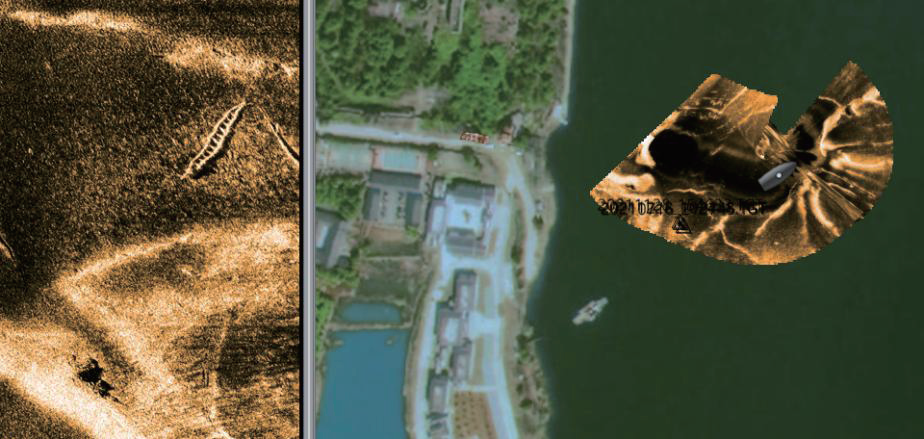

The autonomous OTech software has functions such as real-time image embedding, sonar image display, line planning and navigation, trajectory tracking and coverage display, data recording and playback, target management and export, and multi window display of sensor information. Self applicable equalization processing technology for sound and image, achieving consistent display of distant and nearby images. The software has fewer parameter settings, simple operation, and a user-friendly UI for manual interaction. It can output standard XTF format data, support third-party post-processing software processing, and can be customized according to specific needs.
