Side Scan Sonar

Shark-S900S High Resolution Single-Frequency Side Scan Sonar

  • Description
  • Features
  • Specifications
  • Application
  • Download

    Shark-S900S Single-Frequency Side Scan Sonar is a compact, lightweight, and portable sonar with ultra-low power consumption. It features 900kHz CHIRP signal processing technology, providing a range of 75 meters per side to ensure wide coverage. With a 0.2° horizontal beamwidth, it delivers high-resolution imaging.

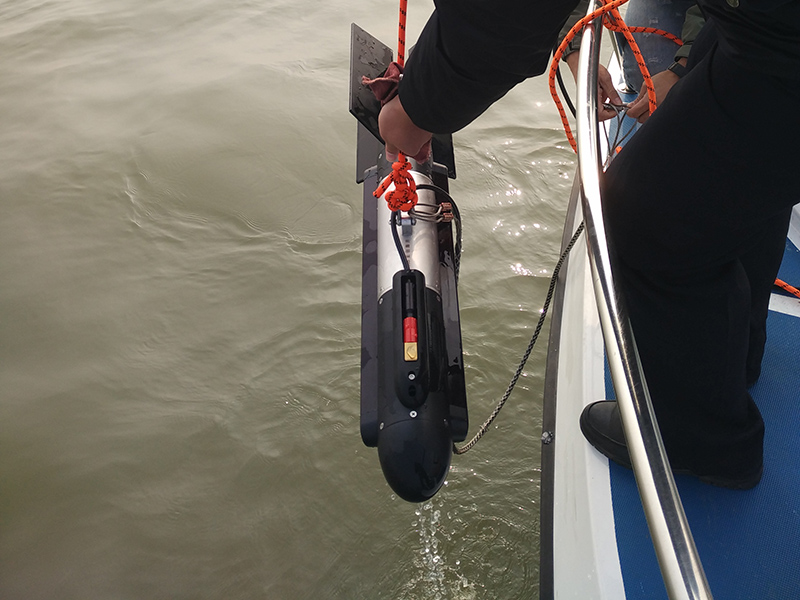

    The system’s core components include a pressure-resistant towfish, a high-strength Kevlar cable, a waterproof deck unit, and proprietary OTech sonar software. It features a robust and durable structure. To enhance underwater safety, we included an overload protection pin on the towfish that breaks upon impact. Its hydrodynamic design ensures steady towing, and an optional depressor fin enables it to reach greater depths. The system has an ultra-low power consumption design and supports both AC power supply and battery inverter power.

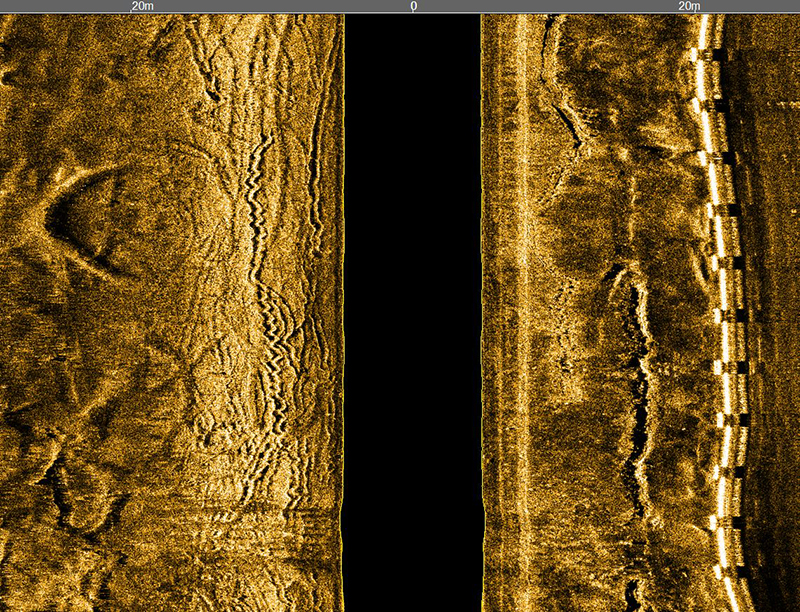

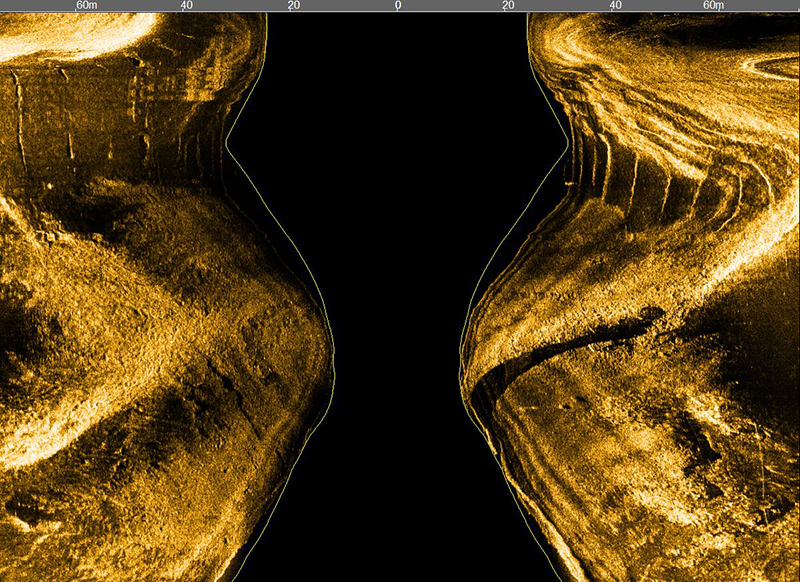

    The proprietary OTech software includes features such as real-time image mosaicking, sonar image display, survey line planning and navigation, track tracking and coverage display, data recording and playback, target management and export, and multi-window sensor information display. The sonar image adaptive equalization technology ensures consistent display quality for both near and far images. With minimal parameter settings and a user-friendly interface, the software is easy to operate. It supports output in standard XTF format, enabling processing in third-party software.

    FEATURES

    lightweight, one-man portable, user-friendly, and reliable

    Supports real-time switching between LFM Chirp signals and Continuous Wave pulses during operation

    Real-time map loading and mosaicking

    OTech’s multifunctional software offers free periodic upgrades and updates.

    Sonar Specifications

    Shark-S900S

    Operating Frequency

    900kHz

    Pulse Type

    LFM (Chirp) / CW

    Maximum Range

    75m

    Beamwidth

    Horizontal: 0.2°

    Vertical: 50°

    Resolution

    Along-track resolution: 0.003h;

    Across-track resolution: 1cm

    Transducer Mounting Angle

    Adjustable downward angles of 10°, 15°, or 20° (factory set to 20°)

    Maximum Operating Depth

    500m

    Towfish Dimensions / Weight

    767mm(L)×105 mm(D) / 15kg

    Deck Unit Dimensions / Weight

    190mm(L)×150mm(W)×50mm(H) / 1.2kg

    Power Supply / Consumption

    220/110V AC or 12V DC inverter input, 15W

    OTech Software

    Real-time mosaicking; live online mapping; OTSS and XTF formats recording; SDK development support; continuous raw data output.

    Tow Cable

    Kevlar coaxial cable, 20m (customizable)


    APPLICATIONS

    Emergency support, police investigation, and firefighting rescue

    Underwater security and hazardous target detection

    Waterway management and obstruction survey

    Marine geology and geophysical survey

    Cable and pipeline route survey and maintenance

    Monitoring of coral reefs, artificial reefs, and underwater aquaculture
