Shark-S450D Ultra High Resolution Dual-Frequency Side Scan Sonar

  • Description
  • Features
  • Specifications
  • Application
  • Download

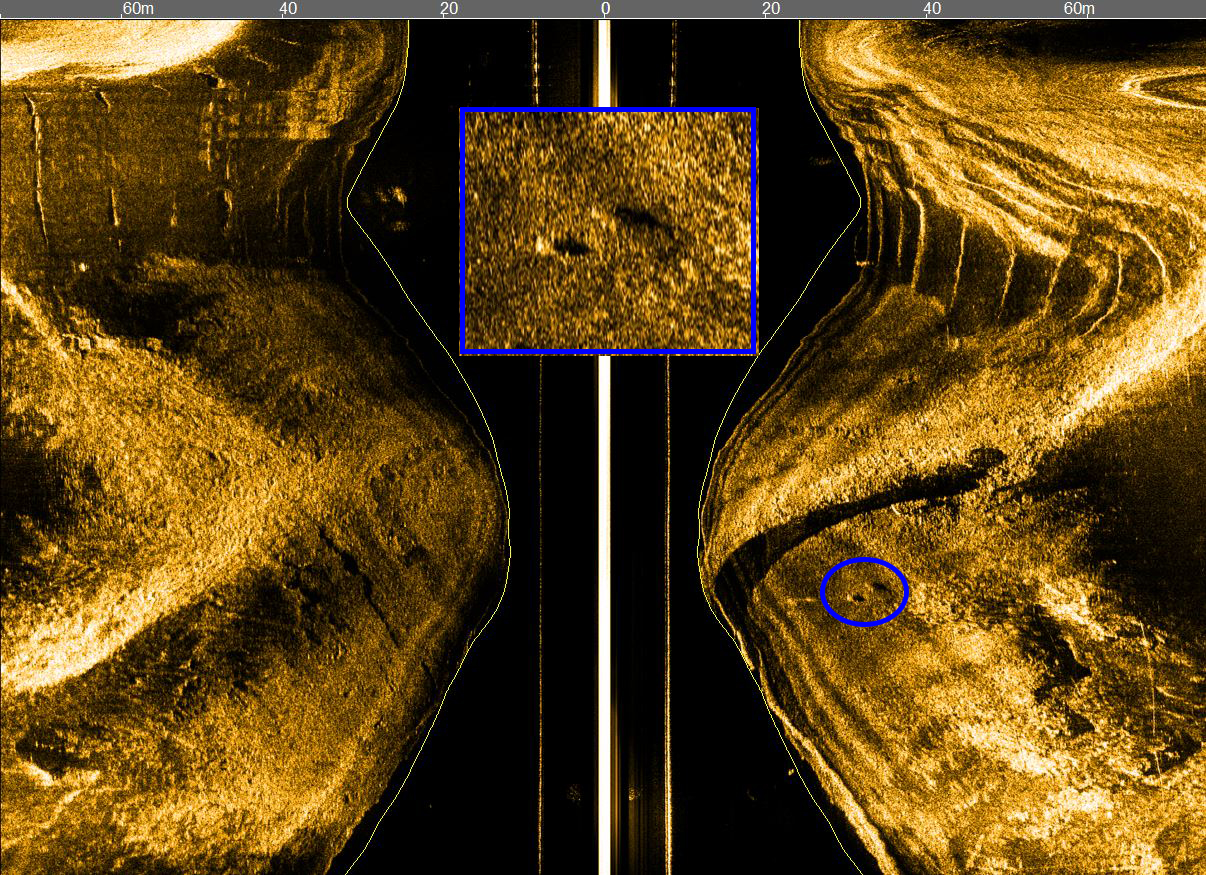

    The Shark-S450D dual-frequency side scan sonar is a high-resolution, multi-purpose system equipped with 450 kHz and 900 kHz simultaneous transmit/receive capability and CHIRP signal processing technology. It features an ultra-narrow 0.2° horizontal beamwidth. The system provides both wide survey coverage and ultra-high-resolution imaging, enabling the precise detection of small targets.

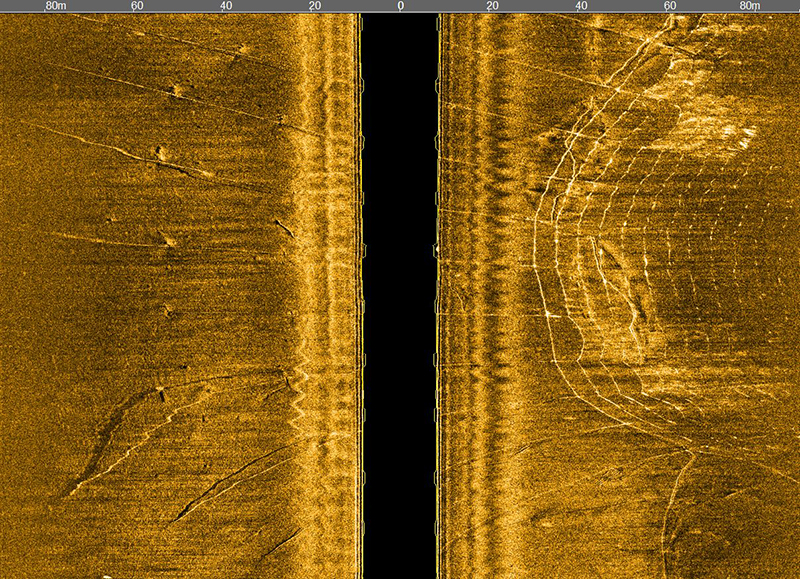

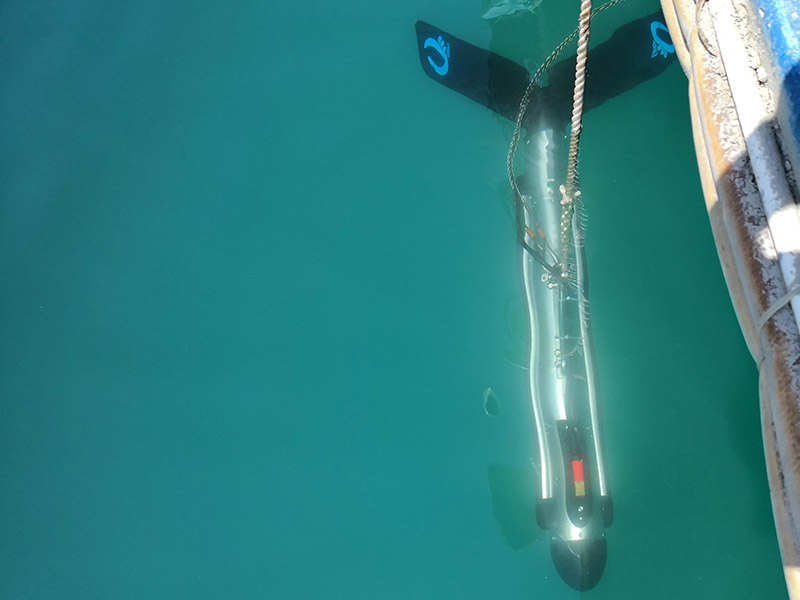

    The system consists of a high-pressure resistant stainless steel towfish, a high-strength armored coaxial cable, a waterproof deck unit, and proprietary OTech sonar software. The towfish is engineered for reliability and durability, with optional magnetometer interface and underwater positioning mounting structure. It supports multiple deployment methods, including towing, hull mounting, and side-mount installation. The underwater overload protection design provides effective impact protection, enhancing the towfish's safety during underwater operations.

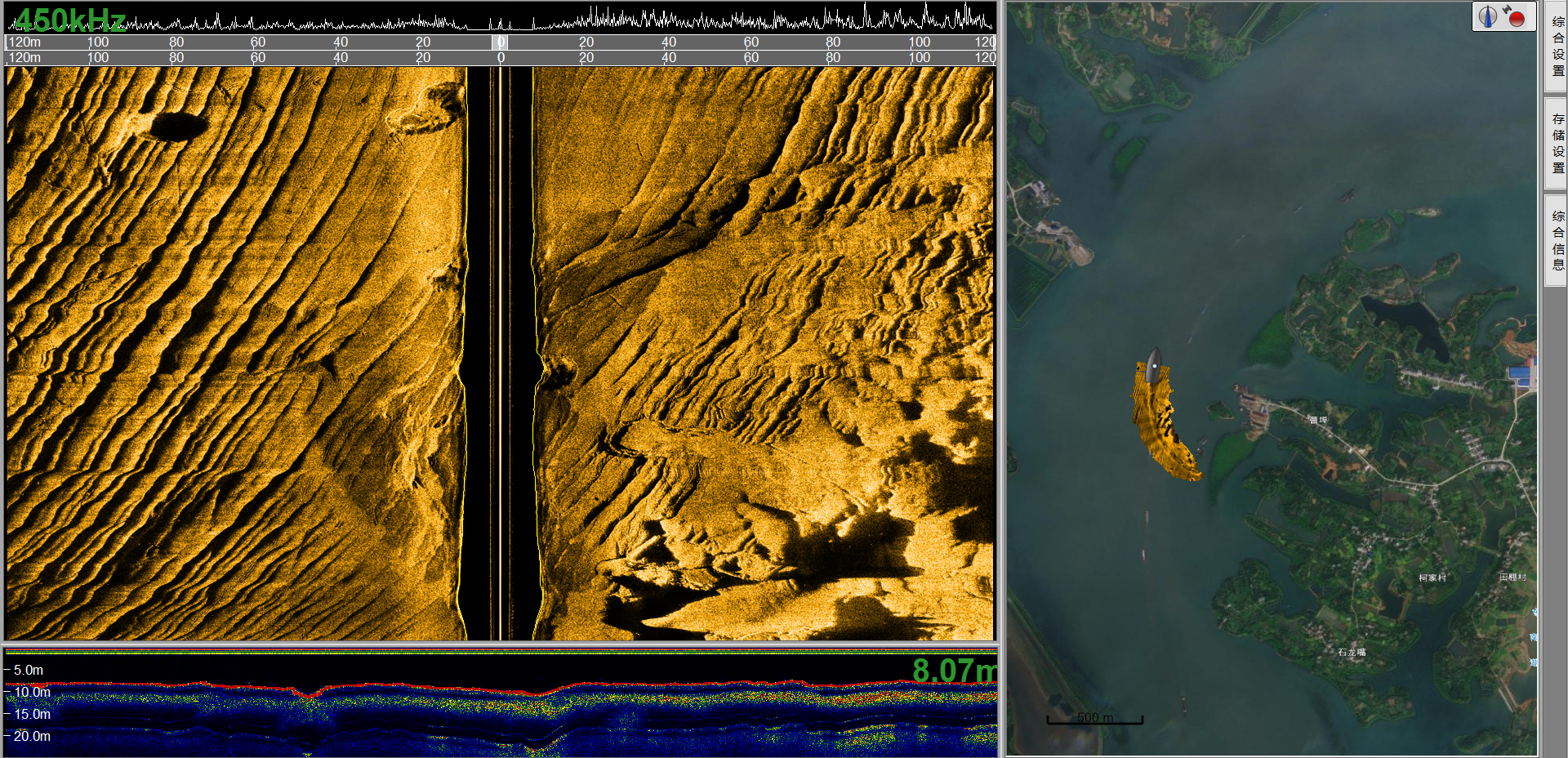

    The proprietary OTech software combines ease of use with powerful functionality, offering features such as real-time image mosaic stitching, sonar image waterfall display, survey line planning and navigation, track tracking and coverage display, data recording and playback, target management and export, and multi-window sensor information display. The software utilizes adaptive equalization processing technology to ensure consistent image quality across both near and far ranges. With minimal parameter settings and a user-friendly UI design, it is straightforward to operate. It supports output in the standard XTF format, compatible with third-party post-processing software. The software can be customized to meet specific requirements. The enhanced version provides real-time output of multiple raw data formats, enabling the development of AI-based automatic target recognition features.

    Key Features

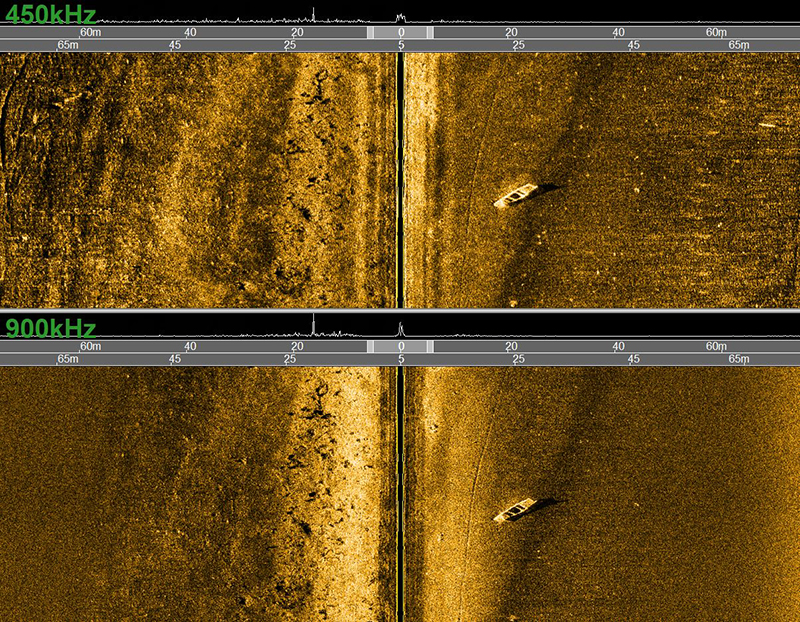

    Dual-frequency simultaneous operation, enabling both wide-swath coverage and high-resolution seabed imaging

    Built-in attitude sensor for real-time tracking of pitch, roll, and heading

    Integrated single-beam echosounder for accurate bottom-tracking

    Supports real-time mosaicking, raw data output, and SDK development

    OTech’s multifunctional software offers free periodic upgrades and updates.

    Sonar Specifications

    Shark-S450D

    Operating Frequency

    450kHz & 900kHz dual-frequency simultaneous operation

    Pulse Type

    LFM (Chirp) / CW, 60 kHz bandwidth

    Maximum Range

    150m @450kHz,75m @900kHz

    Beamwidth

    Horizontal: 0.2° @450kHz, 0.2° @900kHz

    Vertical: 50°

    Resolution

    Along-track resolution: 0.003h (range) @450kHz, 0.003h @900kHz;

    Across-track resolution: 1cm

    Transducer Mounting Angle

    Adjustable downward angles of 10°, 15°, or 20° (factory set to 20°)

    Maximum Operating Depth

    1000m (Cutomizable)

    Standard Built-in Sensors

    Single-beam echosounder, attitude sensor (pitch, roll, heading), pressure sensor

    Towfish Dimensions / Weight

    1143 mm (L) × 105 mm (D) / 26 kg (316L stainless steel)

    Deck Unit Dimensions / Weight

    227mm(L)×192mm(W)×50mm(H) / 1.9kg

    Power Supply / Consumption

    220/110VAC, 30W

    OTech Software

    Real-time mosaicking; live online mapping; OTSS and XTF formats recording; SDK development support; continuous raw data output.

    Tow Cable

    Kevlar coaxial cable, 50 m (customizable); optional winch available

    Applications

    Emergency support, police investigation, and firefighting rescue

    Underwater security and hazardous target detection

    Waterway management and obstruction survey

    Marine geology and geophysical survey

    Cable and pipeline route survey and maintenance

    Monitoring of coral reefs, artificial reefs, and underwater aquaculture
