Multibeam Echosounder

Shark-M300 Multibeam Echosounder

  • Description
  • Features
  • Specifications
  • Application
  • Download

       M300 is a high accuracy and high resolution multibeam systems, the use of amplitude and phase detection technology, to achieve a high coverage of 130 degrees, number of beams up to 512. The new sonar interface technology improves the time synchronization accuracy of all the auxiliary sensors, realizes the synchronization of the millisecond level, and improves the accuracy of the system.


       The Sonar consists of  compact  projector, receiver modules and inboard Sonar Interface Module Third party auxiliary sensors are connected to the Sonar Interface Module.The sonar data is tagged with GPS time.


         AC power supply, battery power supply can be used for ultralow power consumption design. The mechanical structure is compact and portable, easy to carry, reliable and durable.

    • Focused 1.5° * 1.5° beam widths

    • Wide swath sector 10° to 130°

    • Automated Track and Control

    • Easy installation and operation

    • Low volume ,weight and power

    • OTech® customizable software

    • Optional other sensors

    Systems Specification

    Frequency

    300kHz

    Beam Width

    1.5° * 1.5°

    Pulse Length

    25us-500us, CW

    Ping Rate

    25Hz

    Range Resolution

    2cm

    Swath Sector

    130°

    Number of beams

    512

    Max Range

    300m

    Temperature

    -5°C - 45°C / -30°C - 55°C

    Power

    200-240VAC

    Consumption

    30W

    Mechanical

    Projector Dim

    210mm*110mm*125mm(L*W*H)

    Projector Mass

    4.0kg

    Receiver Dim

    210mm*110mm*125mm(L*W*H)

    Receiver Mass

    4.3kg

    Integration Dim

    360mm*242mm*222mm(L*W*H)

    Integration Mass

    13.5kg

    Module Dim

    230mm*220mm*90mm(L*W*H)

    Module Mass

    2.5kg

    Cable

    25m

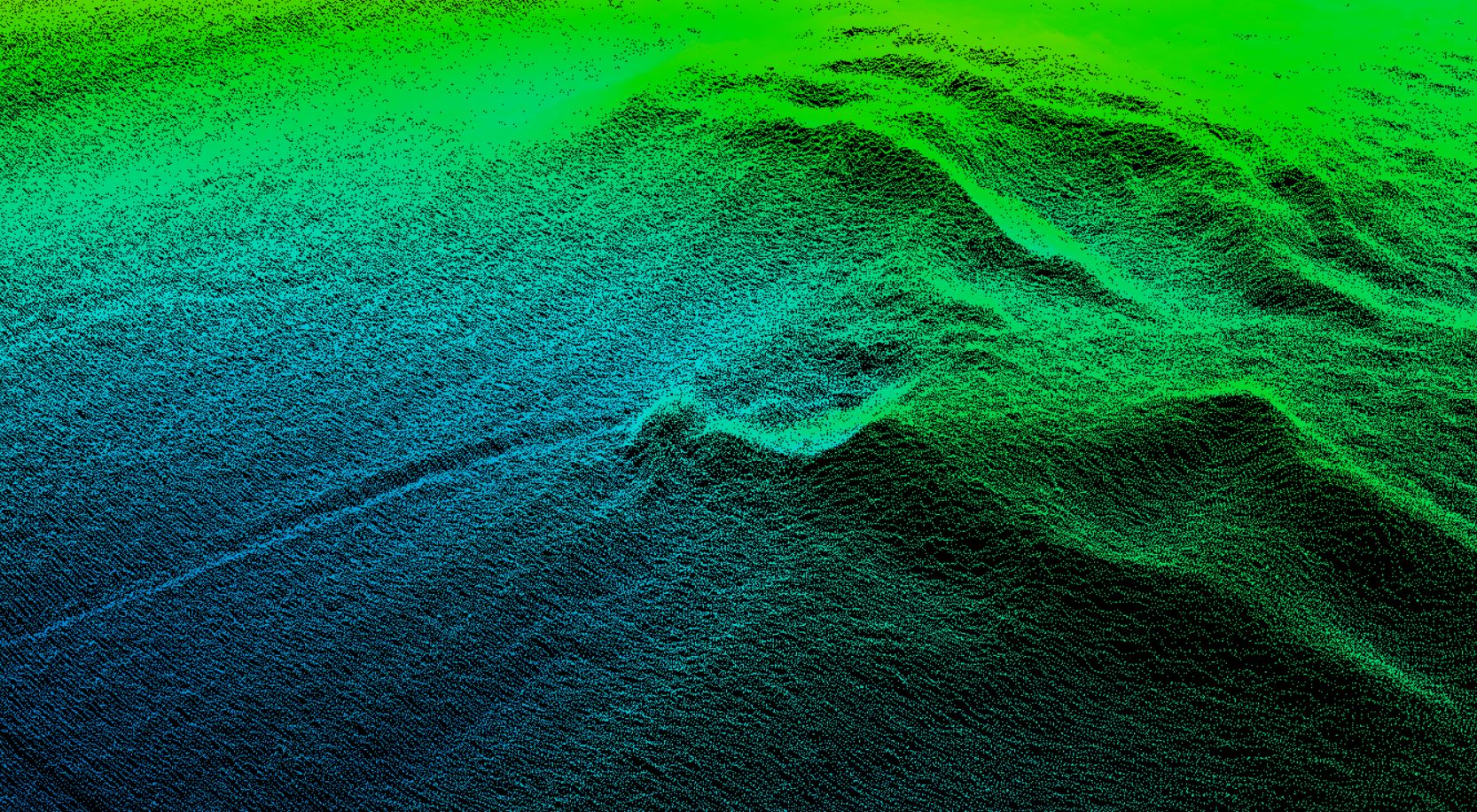

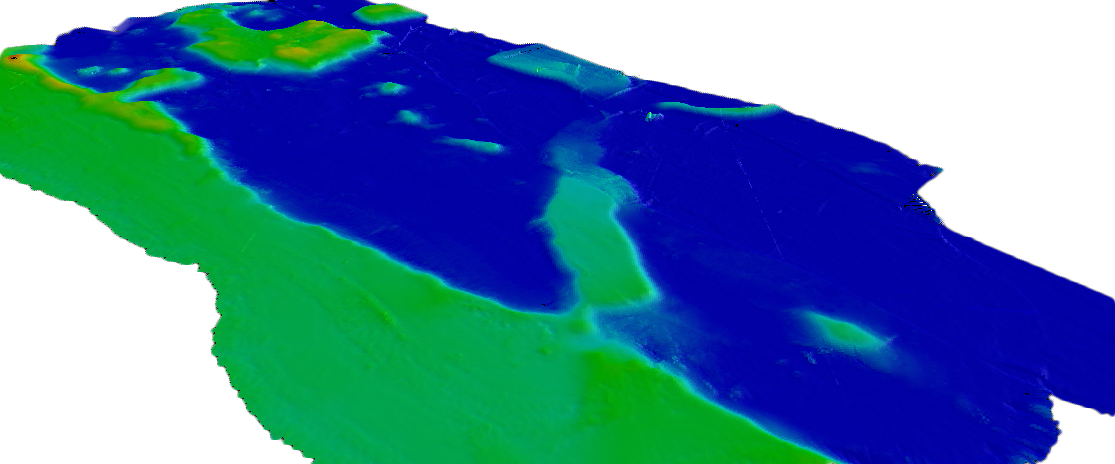

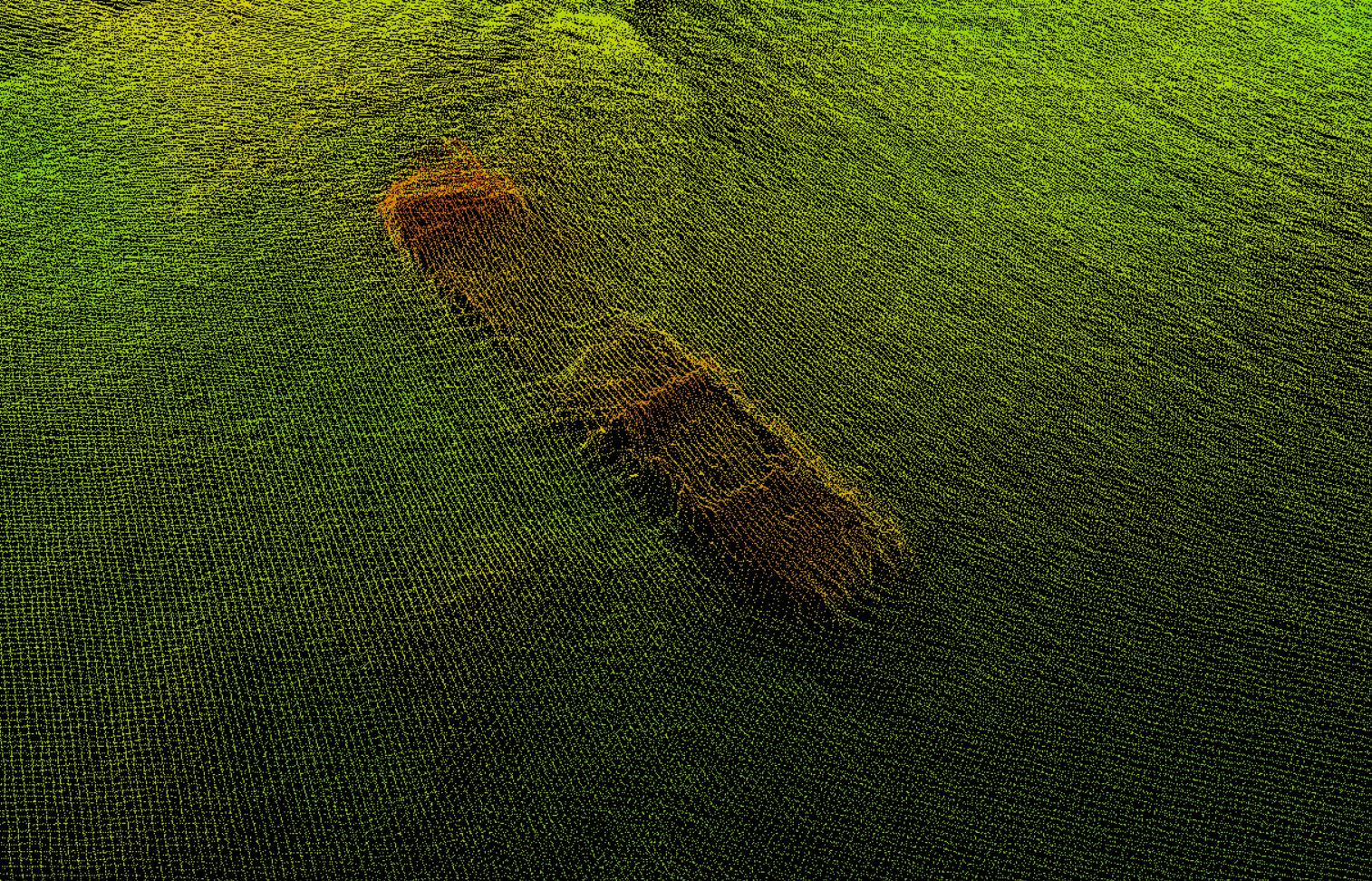

    • Hydrographic Surveys

    • Dredging surveys

    • Port mapping

    • River surveys

    • Environment Research

    • Pipeline Route

    • Defense & Security
